YOSEN

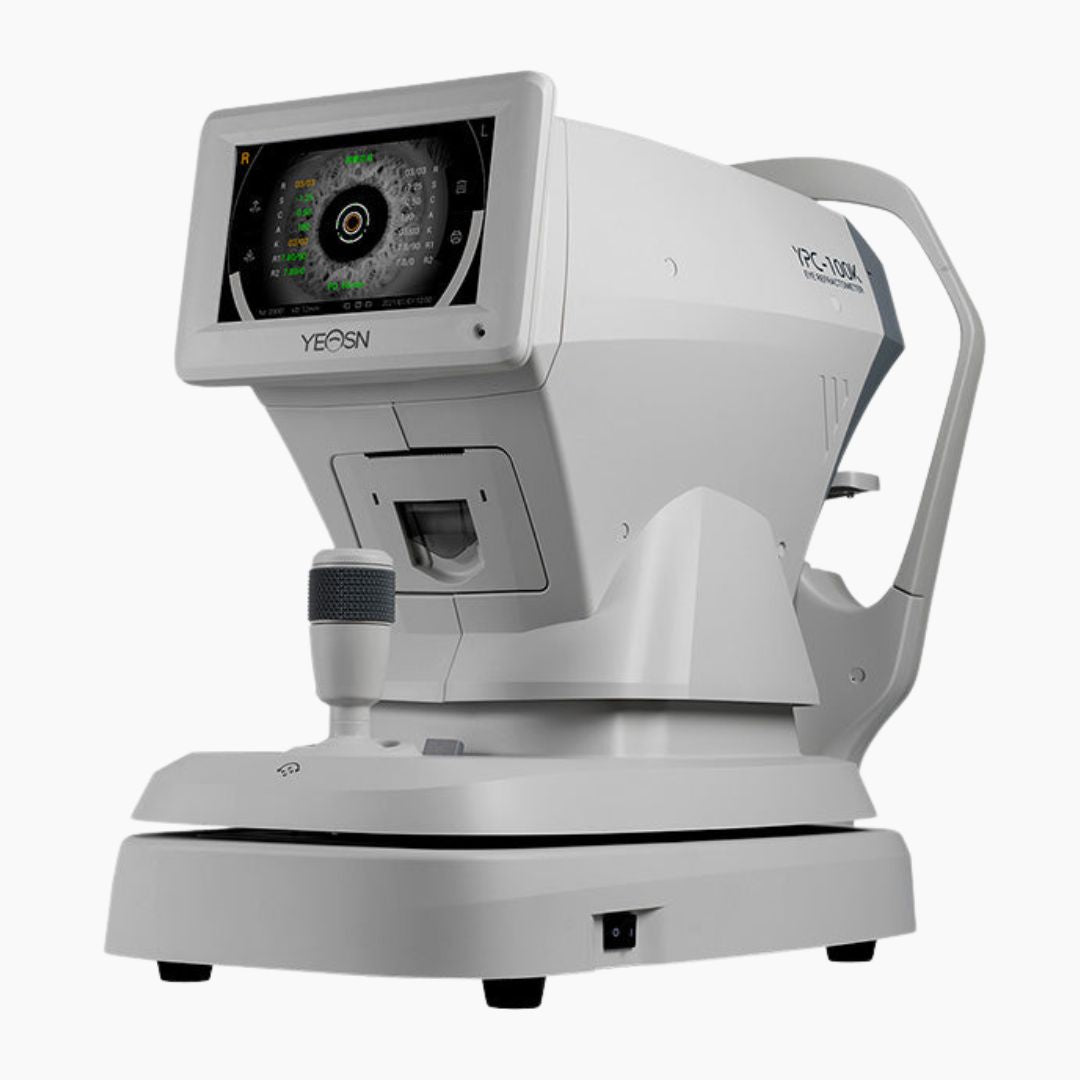

YPC-100/100K EYE REFRACTOMETER

YPC-100/100K EYE REFRACTOMETER

$3,499.00 USD
$3,499.00 USD
Sale Sold out
SKU: YPC-100/100K
Tags:
Shipping calculated at checkout.
Category Feature / Specification Details / Description
Core Technology Near-Infrared Laser Measurement Provides concentrated energy for stable projected images
NIR Band Enhanced Sensor SONY sensor with >90% quantum efficiency at 700–850 nm
Alignment Assistance Real-Time Eye Position Height Indication Jaw support guidance via on-screen progress bar
Imaging System WDR & Multi-Frame Fusion High image quality in variable lighting conditions
Imaging Resolution >20 LP/mm across the entire imaging area
Motor & Control Stepper Motor Imported two-phase hybrid motor with open-loop subdivision control
Display & Ergonomics LCD Screen 7-inch fully laminated display with 1024?ó600 resolution
Tilt Adjustment Supports viewing angles from 5¬? to 80¬?



Technical Specification:

Category Specification Details / Range
Refractive Measurement Sphere –30.00D to +25.00D (Step 0.12 / 0.25)
Cylinder –10.00D to +10.00D (Step 0.12 / 0.25)
Axis Angle 0¬? to 180¬? (Step 1¬? / 5¬?)
Minimum Pupil Diameter φ2.0 mm
Corneal Parameters Curvature Radius 5.00 mm to 10.00 mm (Step 0.01 mm)
Refractive Power 33.75D to 67.50D (Step 0.12 / 0.25)
Equivalent Refractive Index 1.3375
Cylinder Power –10.00D to +10.00D (Step 0.12 / 0.25)
Cylinder Axis 0¬? to 180¬? (Step 1¬? / 5¬?)
Alignment & Display Pupil Distance 30 mm to 85 mm (Step 1 mm)
Connectivity Interface USB, RS-232, LAN
Output Options Printer 58 mm Thermal Printer, φ50 mm Paper Roll
Physical Dimensions Packing Size (W ?ó D ?ó H) 280 mm ?ó 515 mm ?ó 460 mm
Net Weight 18 kg
Power Supply Voltage Range 110–240V~
Frequency 50–60 Hz
Consumption 70 VA
