i-Lens Series: PMMA IOLs for Precision Posterior & Anterior Chamber Restoration

i-Lens Series: PMMA IOLs for Precision Posterior & Anterior Chamber Restoration

$0.00 USD
$0.00 USD
Sale Sold out
Tags:
Shipping calculated at checkout.

i-Lens Series, a versatile collection of Single-Piece PMMA Intraocular Lenses (IOLs) tailored for both posterior and anterior chamber implantation. With a range of designs optimized for surgical flexibility and patient anatomy, this lineup exemplifies craftsmanship in rigid optics for global ophthalmic care.


πŸ”¬ Material & Design Overview

  • Material: Bio-compatible PMMA with spherical biconvex optics

  • Edge & Haptic: C-design with step vaultβ€”engineered for capsular and anterior stability

  • Sterilization: Ethylene Oxide (ETO)

  • Dialing Holes: Optionalβ€”facilitates intraoperative manipulation

  • AC Depth: Varies by chamber placement, from 2.95 mm to 5.0 mm

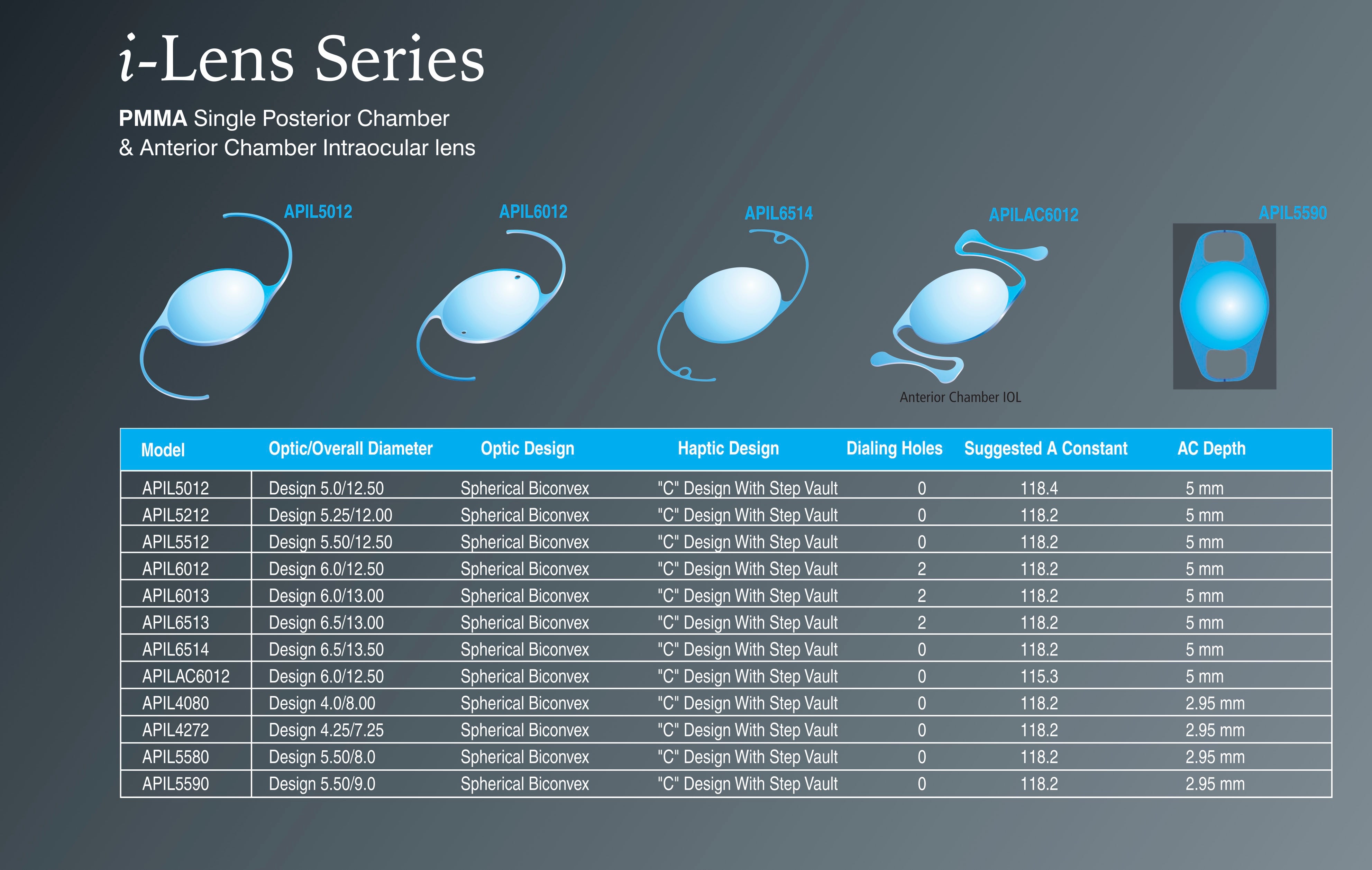

πŸ“Š Model Matrix

Model Optic/Overall Dia Optic Design Haptic Design Dialing Holes A-Constant AC Depth
APIL5012 5.00 / 12.50 mm Spherical Biconvex C-Design with Step Vault 0 118.4 5 mm
APIL5212 5.25 / 12.00 mm Spherical Biconvex C-Design with Step Vault 0 118.2 5 mm
APIL5512 5.50 / 12.50 mm Spherical Biconvex C-Design with Step Vault 0 118.2 5 mm
APIL6012 6.00 / 12.50 mm Spherical Biconvex C-Design with Step Vault 2 118.2 5 mm
APIL6013 6.00 / 13.00 mm Spherical Biconvex C-Design with Step Vault 2 118.2 5 mm
APIL6513 6.50 / 13.00 mm Spherical Biconvex C-Design with Step Vault 2 118.2 5 mm
APIL6514 6.50 / 13.50 mm Spherical Biconvex C-Design with Step Vault 2 118.2 5 mm
APILAC6012 6.00 / 12.50 mm Spherical Biconvex C-Design with Step Vault 0 115.3 5 mm
APIL4080 4.00 / 8.00 mm Spherical Biconvex C-Design with Step Vault 0 118.2 2.95 mm
APIL4272 4.25 / 7.25 mm Spherical Biconvex C-Design with Step Vault 0 118.2 2.95 mm
APIL5580 5.50 / 8.00 mm Spherical Biconvex C-Design with Step Vault 0 118.2 2.95 mm
APIL5590 5.50 / 9.00 mm Spherical Biconvex C-Design with Step Vault 0 118.2 2.95 mm


🌟 Clinical Advantages

  • Wide Range of Sizes: Meets diverse anatomical profiles

  • Robust Vaulted Architecture: Prevents iris touch and ensures zonular compatibility

  • Anterior Chamber Options: Lower AC depth profiles for safe corneal positioning

  • Posterior Chamber Stability: Large optic diameters for reliable centration

🌐 Contact & Access

  • πŸ“§ Email: sales@akritiophthalmic.com

  • 🌍 Website: Β www.akritiophthalmic.com
