Ophtalmic B Scan
Couldn't load pickup availability
Product details
- Vendor Akriti
- SKU SW-2100
Need personalized supplement recommendations?
Your wellness starts here!
All our products are carefully packaged and come with clear instructions. Shop with confidence and take the next step toward a healthier, more vibrant you!

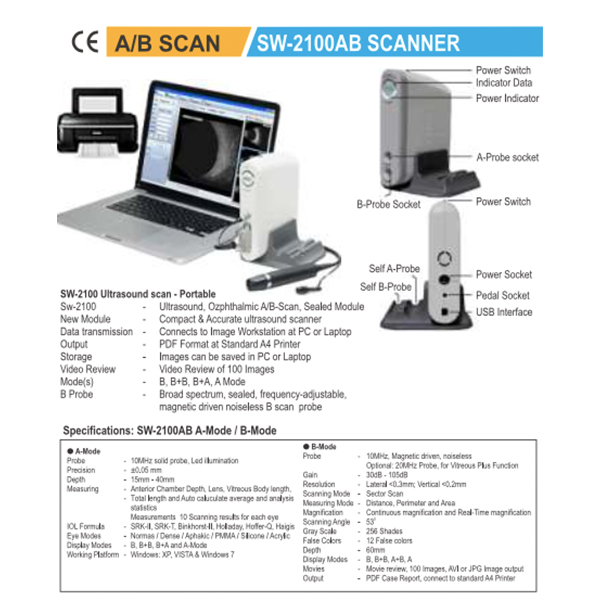

Specifications
B scan
Frequency: 10MHz/20MHz (optional) ,Magnetic driven, noiseless
Scanning Mode: Sector Scanning
Magnify: Multi continuous magnification,Real-Time magnification
Resolution: Lateral ≤0.3mm; Vertical≤0.2mm
Geometry position precision: Lateral ≤10%; Vertical≤5%
Depth:60mm
Enhance the part of vitreous body  and retina
Gain of probe: 30dB-105dB
Scanning Angle:53¬?
Gray Scale: 256
False Color: Multi colors. OCT
Measurement type: multigroup distances, perimeters and areas
Image postprocessing: multiple curves processing, Pseudo-color processing curve
Movies: 100 images movie review, AVI JPG format image output
A scan:
Frequency:10MHz,  with LED
Depth: 40mm
Precision:±0.05 mm
Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average
Eye mode: Phakic / Aphakic / Dense / Various IOL
IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS
Stat. Calculation: Average and standard deviation
Store: 10 Scanning results for each eye
Others:
Display Mode :B, B+B, B+A, A
Hint: preset keyword
Case Search: Multi-keywords
Working Platform: Windows XP, VISTA, WINDOWS7
User-defined report template
