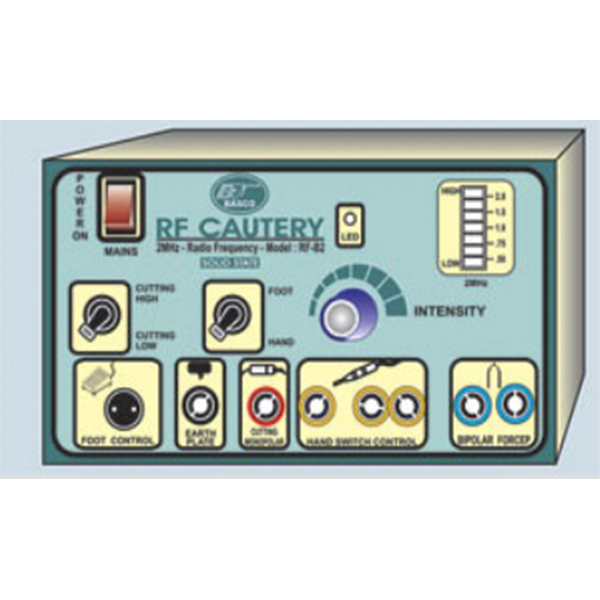

RF Cautery for Ophthalmology 2MHZ

Wet-Field Bipolar Coagulator is a mini diathermy solid state for controlling bleeding during surgical procedures, eliminating tissues trauma using Bipolar standard Forceps and Erasers

Tissue may be coagulated under irrigation (wet-field) with saline or in a bloody field. The high frequency current passes from one forcep tip to the other coagulating only the bleeder or particular tissue.

• Foot controlled system gives convenience to surgeons.
• Forceps, Erasers and Cables are autoclavable.
• Digital display for easy setting.
• Imported Forcep and Erasers can be attached.
• Audible tone lets surgeon know the unit is activated.
• Compact in size, elegant look and portable.

Benefits

• Solid state circuit system ensures safest procedures to delicate tissue involved for Cataract, Retinal and IOL Surgery.
• Can be used with irrigation (wet-field) or in the bloody field itself, to locate the bleeder easier to enable the surgeon to have better visualisation.
• Useful for Ophthalmic surgical procedures and for delicate surgery reducing tissue trauma.
• Coagulation with saline irrigation reduces tissue heating, shrinkage, drying and sticking of coagulam to the forcep tips

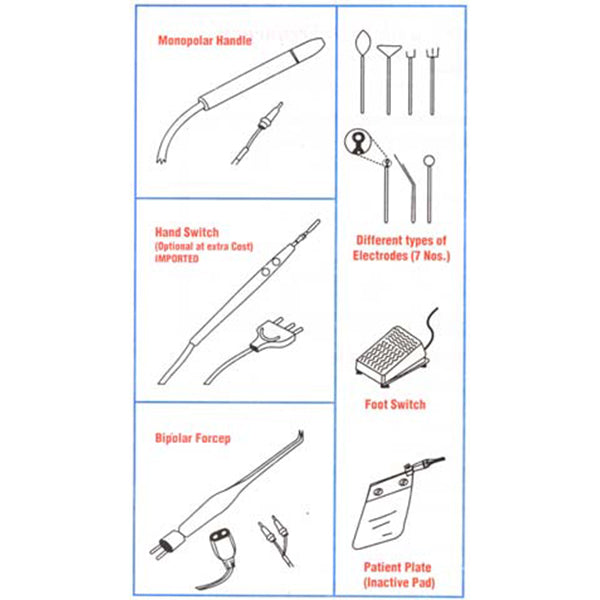

• Standard Accessories



  Monopolar Handle      1No.

  Patient plate                1No.

  Electrodes Set             1No.

  Foot Switch                 1No.

  Carrying Case              1No.

  Hand Switch                1No.

  Bipolar Cable               1No.

  Bipolar Forcep             1No.



  Specification:



  Power input 220 volts +-5%

  Power consumption 150 Watts

  Frequency 2 MHz

  Maximum Output

  HF Monopolar 150Watts on 400 ohm load

  HF Bipolar 100 Watts on 100 ohm load

  Fulguration 100 Watts on 1000 ohm.



  Size: 8 1/2" X 7 1/2" X 4"

  Weight: 3.5 Kgs
