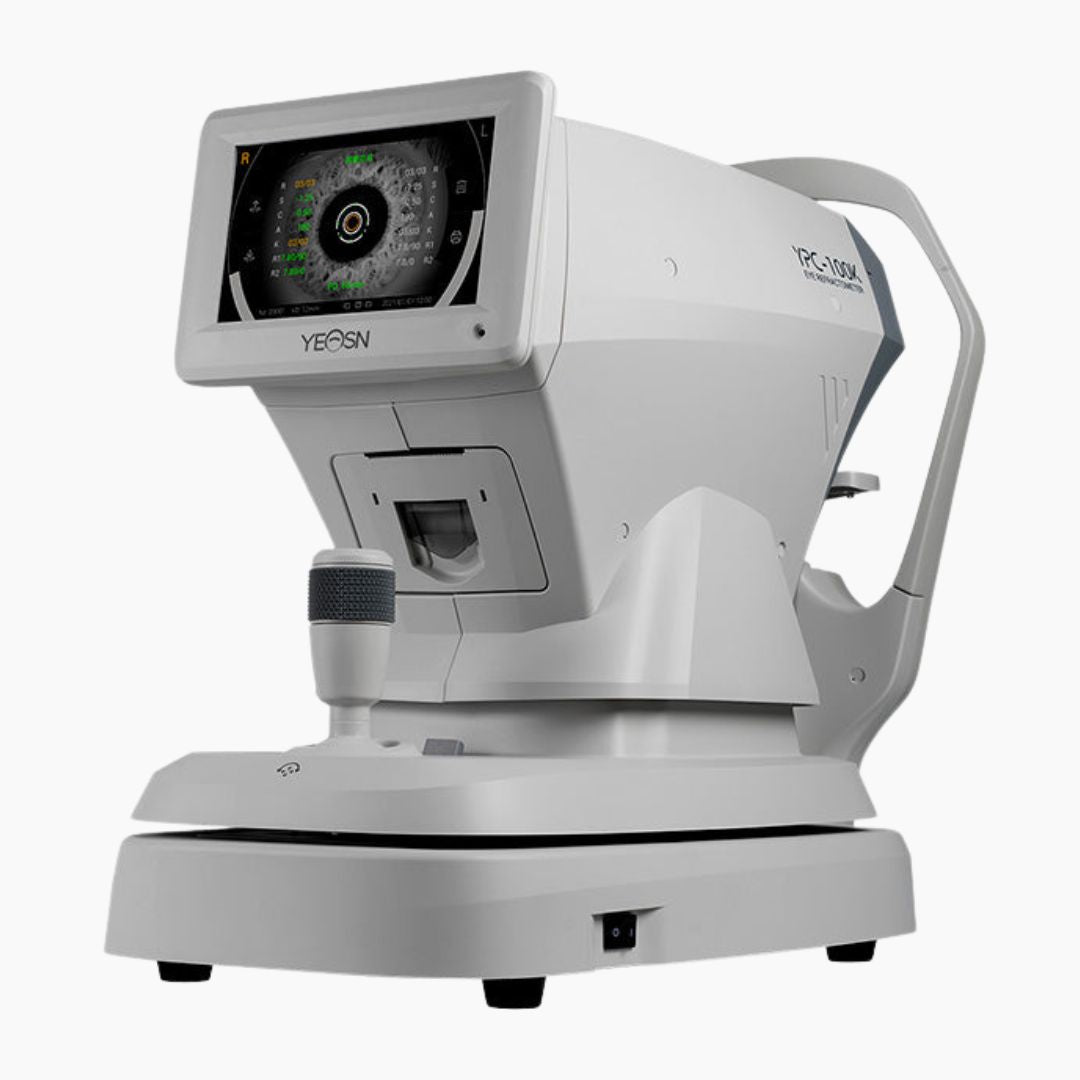

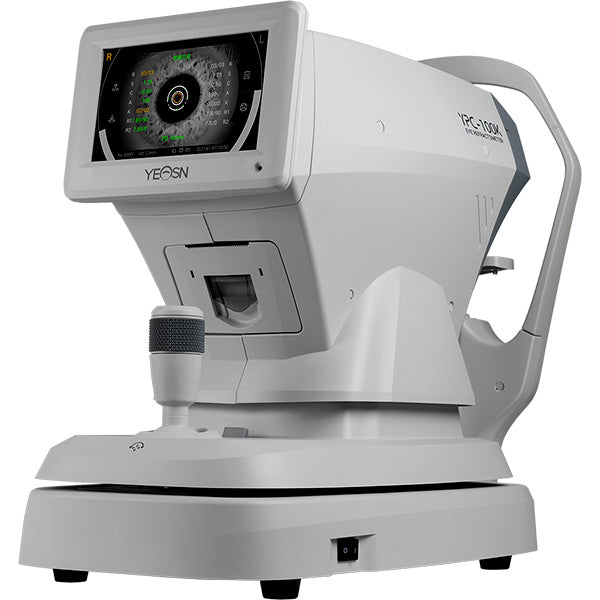

YPC-100/100K EYE REFRACTOMETER
Couldn't load pickup availability
Product details
- Vendor YOSEN
- SKU YPC-100/100K
Need personalized supplement recommendations?
Your wellness starts here!
All our products are carefully packaged and come with clear instructions. Shop with confidence and take the next step toward a healthier, more vibrant you!
| Category | Feature / Specification | Details / Description |
|---|---|---|
| Core Technology | Near-Infrared Laser Measurement | Provides concentrated energy for stable projected images |
| NIR Band Enhanced Sensor | SONY sensor with >90% quantum efficiency at 700–850 nm | |
| Alignment Assistance | Real-Time Eye Position Height Indication | Jaw support guidance via on-screen progress bar |
| Imaging System | WDR & Multi-Frame Fusion | High image quality in variable lighting conditions |
| Imaging Resolution | >20 LP/mm across the entire imaging area | |
| Motor & Control | Stepper Motor | Imported two-phase hybrid motor with open-loop subdivision control |
| Display & Ergonomics | LCD Screen | 7-inch fully laminated display with 1024?ó600 resolution |
| Tilt Adjustment | Supports viewing angles from 5¬? to 80¬? |

Technical Specification:
| Category | Specification | Details / Range |
|---|---|---|
| Refractive Measurement | Sphere | –30.00D to +25.00D (Step 0.12 / 0.25) |
| Cylinder | –10.00D to +10.00D (Step 0.12 / 0.25) | |
| Axis Angle | 0¬? to 180¬? (Step 1¬? / 5¬?) | |
| Minimum Pupil Diameter | φ2.0 mm | |
| Corneal Parameters | Curvature Radius | 5.00 mm to 10.00 mm (Step 0.01 mm) |
| Refractive Power | 33.75D to 67.50D (Step 0.12 / 0.25) | |
| Equivalent Refractive Index | 1.3375 | |
| Cylinder Power | –10.00D to +10.00D (Step 0.12 / 0.25) | |
| Cylinder Axis | 0¬? to 180¬? (Step 1¬? / 5¬?) | |
| Alignment & Display | Pupil Distance | 30 mm to 85 mm (Step 1 mm) |
| Connectivity | Interface | USB, RS-232, LAN |
| Output Options | Printer | 58 mm Thermal Printer, φ50 mm Paper Roll |
| Physical Dimensions | Packing Size (W ?ó D ?ó H) | 280 mm ?ó 515 mm ?ó 460 mm |
| Net Weight | 18 kg | |
| Power Supply | Voltage Range | 110–240V~ |
| Frequency | 50–60 Hz | |
| Consumption | 70 VA |
